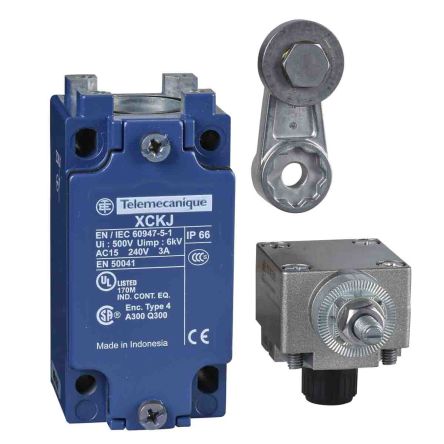

Limit Sw Rot Lever Roll NC&NO Snp 1/2NPT [XCKJ10513H7]; 195-1661
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66 |
| Maximum Current | 0.125 |
| Housing Material | Zamak |
| Maximum AC Voltage | 50V |
| Maximum DC Voltage | 50V |
| Connection Type | 1/2 in NPT |
| Series | XCKJ |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 62mm |
| Mechanical Life Minimum | 30000000 cycles |
| Maximum Operating Temperature | +70°C |
| Dimensions | 40 x 62 x 133 mm |
| Minimum Operating Temperature | -25°C |
| Operating Force | 0.25Nm |
| Depth | 133mm |
| Mounting Orientation | Cable |
