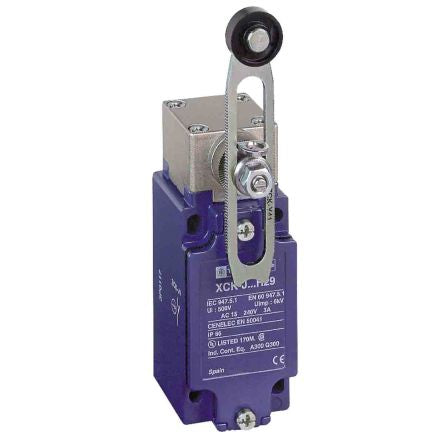

Limit Switch Roller Lever NC&NO Pg13.5 [XCKJ10543]; 195-1664
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66 |
| Maximum Current | 0.125 |
| Housing Material | Zamak |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 13 |
| Series | XCKJ |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 60mm |
| Depth | 177mm |
| Mounting Orientation | Cable |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 30000000 cycles |
| Operating Force | 0.25Nm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 40 x 60 x 177 mm |
