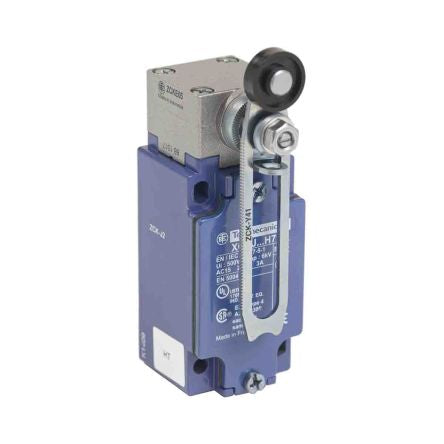

Limit Sw Rot Var Length Roll Lever 1C/O [XCKJ20541H7]; 195-1669
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return |
| Pole and Throw Configuration | 2P |
| Normal State Configuration | 1CO |
| IP Rating | IP66 |
| Maximum Current | 0.125 |
| Housing Material | Zamak |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT |
| Series | XCKJ |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 44mm |
| Depth | 77mm |
| Dimensions | 40 x 44 x 77 mm |
| Mechanical Life Minimum | 30000000 cycles |
| Operating Force | 0.25Nm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
