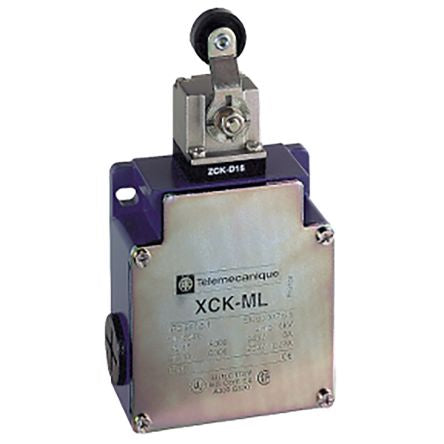

IP66 Snap Action Limit Switch Spring Return Roller Lever Thermoplastic Metal, 2 x (1NC/1NO), 300 V, 500 V [XCKML115H29]; 179-9865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return Roller Lever Thermoplastic |
| Pole and Throw Configuration | 4P |
| Normal State Configuration | 2 x (1NC/1NO) |
| IP Rating | IP66 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Metal |
| Maximum AC Voltage | 300 V, 500 V |
| Maximum DC Voltage | 300 V, 500 V |
| Connection Type | Screw |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 77mm |
| Width | 36mm |
| Dimensions | 77 x 36 x 81 mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 3000000 cycles |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Vertical |
| Depth | 81mm |
| Operating Force | 0.2Nm |
