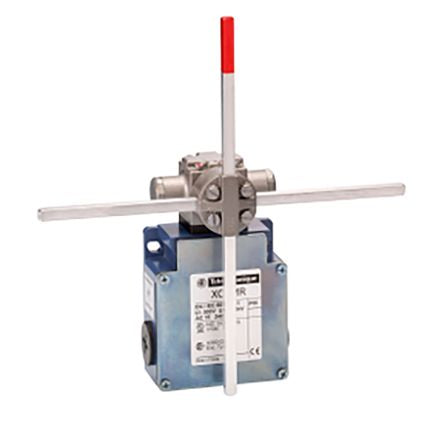

IP66 Slow Break Limit Switch Stay Put Crossed Rods Lever Metal Metal, 2NC, 240V [XCKMR54D1]; 179-9869
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Stay Put Crossed Rods Lever Metal |
| Pole and Throw Configuration | 4P |
| Normal State Configuration | 2 x (2NC) |
| IP Rating | IP66 |
| Maximum Current | 0.125 |
| Housing Material | Metal |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 125V |
| Connection Type | Screw |
| Series | OsiSense XC |
| Contact Type | Slow Break |
| Terminal Type | Screw |
| Length | 200mm |
| Width | 59mm |
| Mechanical Life Minimum | 2000000 cycles |
| Dimensions | 200 x 59 x 118 mm |
| Minimum Operating Temperature | -25°C |
| Operating Force | 0.5Nm |
| Mounting Orientation | Vertical |
| Maximum Operating Temperature | +70°C |
| Depth | 118mm |
