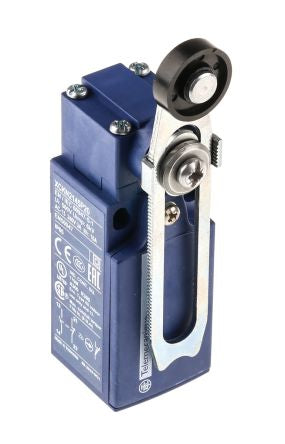

IP65 Snap Action Limit Switch Spring Return Roller Lever Plastic, NO/NC, 240V [XCKN2145P20]; 125-8465
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return Roller Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw Clamp |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 30mm |
| Width | 42.3mm |
| Dimensions | 30 x 42.3 x 157 mm |
| Standards Met | CCC, CSA C22.2 No. 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Mechanical Life Minimum | 10000000 Cycles |
| Maximum Operating Temperature | +70°C |
| Depth | 157mm |
| Operating Force | 0.1Nm |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | EN50047 |
