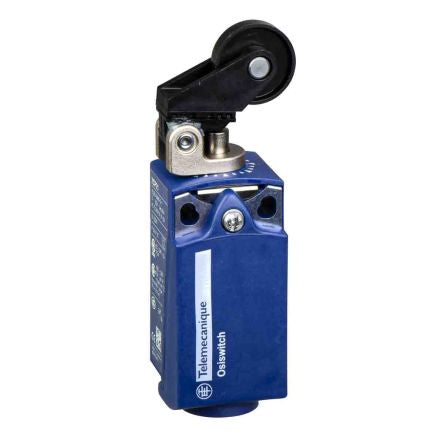

Limit Switch Roller Lever 1NC/1NO Pg11 [XCKP2128G11]; 195-1680
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66, IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 11 |
| Series | XCKP |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 31mm |
| Width | 30mm |
| Mounting Orientation | Cable |
| Operating Force | 18N |
| Minimum Operating Temperature | -25°C |
| Depth | 65mm |
| Dimensions | 31 x 30 x 65 mm |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 15000000 cycles |
