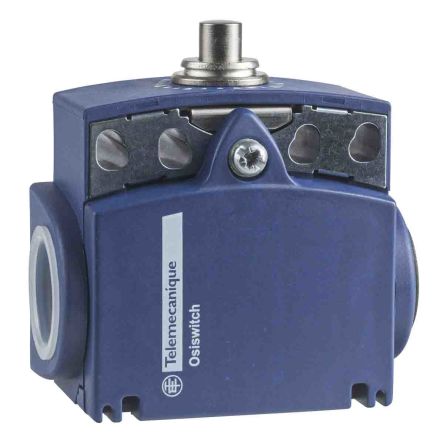

Limit Switch Metal Plunger NC&NO Pg11 [XCKT2110G11]; 195-1688
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66, IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 11 |
| Series | XCKT |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 58mm |
| Width | 38mm |
| Depth | 51mm |
| Operating Force | 45N |
| Minimum Operating Temperature | -25°C |
| Dimensions | 58 x 38 x 51 mm |
| Mechanical Life Minimum | 15000000 cycles |
| Maximum Operating Temperature | +70°C |
| Mounting Orientation | Cable |
