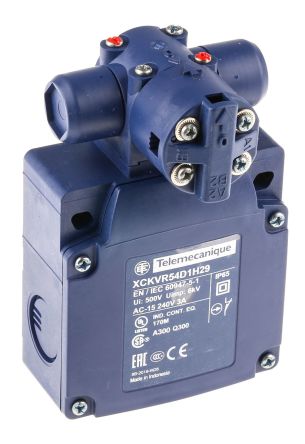

IP65 Slow Break Limit Switch Crossed Rods Lever PBT+PC GF30 FR, Plastic, 2NC, 240V [XCKVR54D1H29]; 125-8467
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Crossed Rods Lever |
| Pole and Throw Configuration | 4P |
| Normal State Configuration | 2NC |
| IP Rating | IP65 |
| Maximum Current | 0.416666666666667 |
| Housing Material | PBT+PC GF30 FR, Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 125V |
| Connection Type | Screw Clamp |
| Series | OsiSense XC |
| Contact Type | Slow Break |
| Terminal Type | Screw |
| Length | 200mm |
| Width | 57mm |
| Minimum Operating Temperature | -25°C |
| Operating Force | 0.5Nm |
| Depth | 200mm |
| Mounting Orientation | EN50047 |
| Maximum Operating Temperature | +70°C |
| Dimensions | 200 x 57 x 200 mm |
| Mechanical Life Minimum | 1000000 Cycles |
| Standards Met | CCC, CE, CSA C22.2 No. 14, EN/IEC 60947-5-1, UL 508 |
