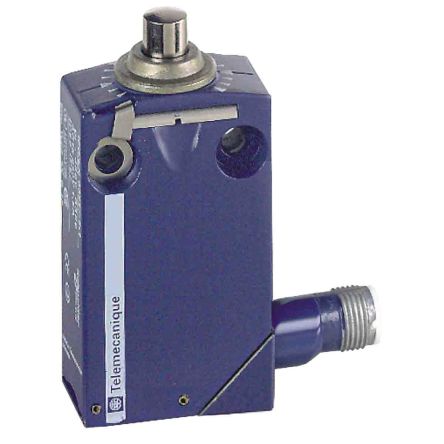

Limit Switch Metal Plunger NC&NO M12 [XCMD2110C12]; 195-1694
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| IP Rating | IP66, IP67, IP68 |
| Maximum Current | 0.125 |
| Housing Material | Zamak |
| Maximum AC Voltage | 50V |
| Maximum DC Voltage | 50V |
| Connection Type | M12 |
| Series | XCMD |
| Contact Type | Snap Action |
| Length | 30mm |
| Width | 16mm |
| Dimensions | 30 x 16 x 82 mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Mechanical Life Minimum | 10000000 cycles |
| Operating Force | 42.5N |
| Depth | 82mm |
| Mounting Orientation | Cable |
