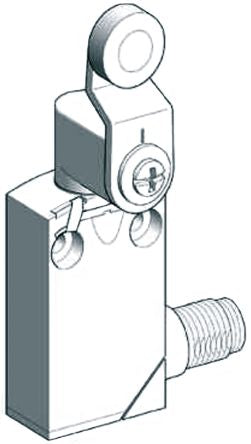

IP66, IP67, IP68 Snap Action Limit Switch Roller Lever Zamak® Zinc Alloy, NO/NC, 60V [XCMD2116C12]; 814-7996
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67, IP68 |
| Maximum Current | 0.166666666666667 |
| Housing Material | Zamak® Zinc Alloy |
| Maximum AC Voltage | 60V |
| Connection Type | M12 |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | 5-Pin Connector |
| Length | 50mm |
| Width | 30mm |
| Dimensions | 50 x 30 x 16 mm |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Multi Directional |
| Mechanical Life Minimum | 1000000 Operations |
| Depth | 16mm |
| Maximum Operating Temperature | +70°C |
