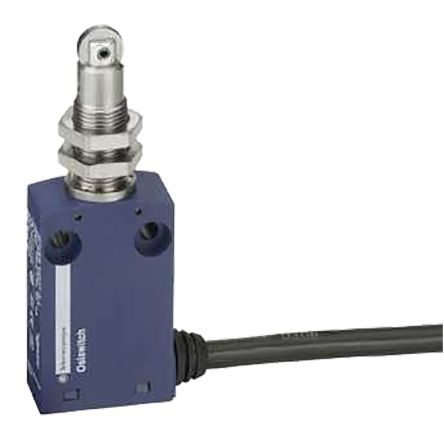

IP65 Snap Action Limit Switch Spring Return Roller Plunger Plastic, NO/NC, 240V [XCMN21F2L1]; 125-8477
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return Roller Plunger |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 0.25 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Fixed Cable |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Fixed Cable |
| Length | 30mm |
| Width | 16mm |
| Standards Met | CCC, CSA C22.2 No. 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Maximum Operating Temperature | +70°C |
| Dimensions | 30 x 16 x 88 mm |
| Mechanical Life Minimum | 5000000 Cycles |
| Minimum Operating Temperature | -25°C |
| Operating Force | 7N |
| Mounting Orientation | EN50047 |
| Depth | 88mm |
