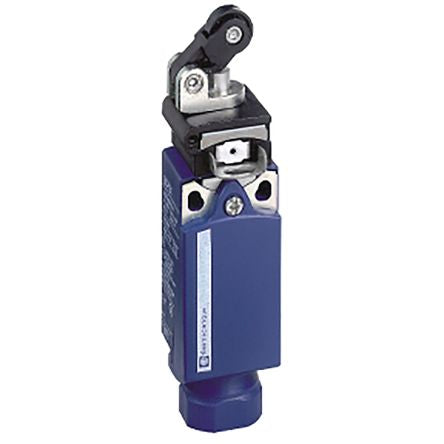

IP66, IP67 Slow Break Limit Switch Spring Return Roller Lever Plunger Thermoplastic Plastic, NC/NO, 240V [XCPR2521P20]; 179-9877
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Spring Return Roller Lever Plunger Thermoplastic |
| Pole and Throw Configuration | 2P |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67 |
| Maximum Current | 0.125 |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Series | OsiSense XC |
| Contact Type | Slow Break |
| Terminal Type | Screw |
| Length | 31mm |
| Width | 39.5mm |
| Maximum Operating Temperature | +70°C |
| Standards Met | CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Dimensions | 31 x 39.5 x 65 mm |
| Minimum Operating Temperature | -25°C |
| Operating Force | 6N |
| Mounting Orientation | Vertical |
| Depth | 65mm |
