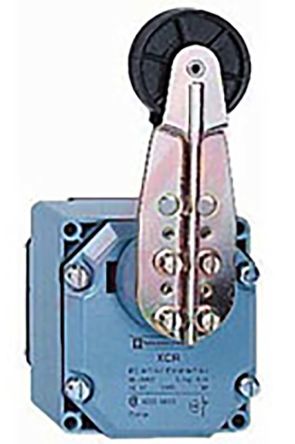

IP54 Snap Action Limit Switch Lever Zinc Alloy, NO/NC, 240V [XCRA15]; 609-6653
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP54 |
| Maximum Current | 0.125 |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 95mm |
| Width | 85mm |
| Mechanical Life Minimum | 10000000 cycles |
| Depth | 53mm |
| Dimensions | 95 x 85 x 53 mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
