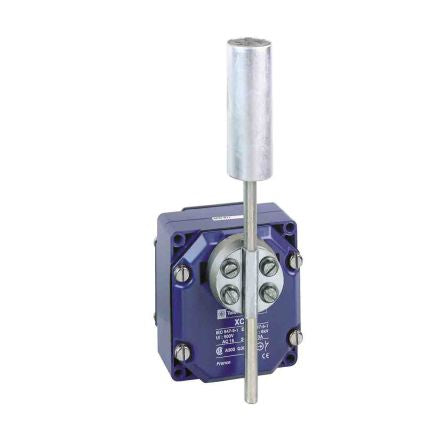

Limit Sw Convey Belt Shift 1NC/1NO Pg13 [XCRT215]; 195-1722
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2CO |
| IP Rating | IP65 |
| Maximum Current | 0.125 |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | PG 13.5 |
| Series | XCR |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 85mm |
| Width | 75mm |
| Mechanical Life Minimum | 300000 cycles |
| Dimensions | 85 x 75 x 95 mm |
| Maximum Operating Temperature | +70°C |
| Operating Force | 1Nm |
| Minimum Operating Temperature | -25°C |
| Depth | 95mm |
