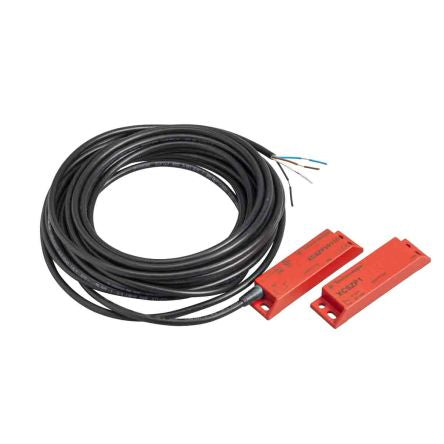

Stand Magnetic Safety Switch 2NC/1NO 10m [XCSDMP70110]; 195-1907
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc, 100 V dc |
| Safety Contacts | 2NC/1NO |
| Housing Material | Thermoplastic PBT |
| Connection Type | 10 m Cable |
| Switch Type | Safety |
| Range | Preventa |
| Terminal Type | Pre-Cabled |
| Series | XCSDMP |
| Switching Distance | 20 mm |
| IP Rating | IP66, IP67 |
| Supply Current | 100 mA |
| Actuator Included | Yes |
| Dimensions | 25 x 13 x 88 mm |
| Width | 13mm |
| Number of Approach Directions | 3 |
| Sensor Principle | Magnetic |
| Safety Category | Category 4 (EN/ISO 13849-1), PL = e (EN/ISO 13849-1), SIL 3 (EN/IEC 61508) |
| Length | 25mm |
| Actuator Type | Coded |
| Depth | 88mm |
