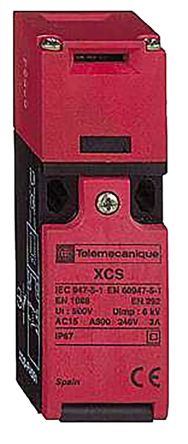

XCSPA Interlock, Polyamide, 2NC/1NO [XCSPA492]; 132-9174
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | M16 |
| Lock Style | Key |
| Normal State Configuration | 2NC/1NO |
| Housing Material | Polyamide |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Safety Contacts | 2NC/1NO |
| Range | Preventa |
| Actuator Included | Yes |
| Number of Head Directions | 8 |
| Series | XCSPA |
| Depth | 94mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 30 x 30 x 94 mm |
| IP Rating | IP67 |
| Maximum Current | 1.5 A |
| Standards Met | CSA, CSA C22.2 No. 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, ISO 14119, TC, UL, UL 508 |
| Length | 30mm |
| Width | 30mm |
