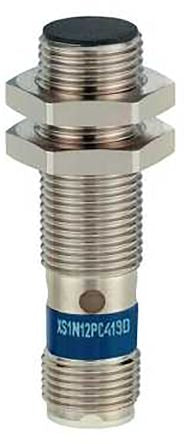

Telemecanique Sensors, M12 x 1, PNP-NO/NC Inductive Sensor 49.95mm Length, 12 → 24 V dc supply voltage [XS1N12PC419D]; 123-8630
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO/NC |
| Detection Range | 4 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 12 → 24 V dc |
| Length | 49.95mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Flush Mount |
| Switching Current | ≤200 mA |
| IP Rating | IP65, IP67, IP69K |
| Housing Material | Brass |
| Maximum Switching Frequency | 5kHz |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Standards Met | CSA, E2, IEC 62061, TUV, UL |
| Maximum Operating Temperature | +70°C |
