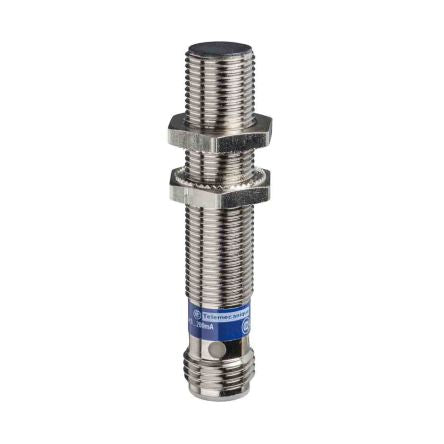

Induct Sensor 12mm NO 12-24V M12 [XS512BSDAM12]; 195-1849
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | NO |
| Detection Range | 2 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 36 V dc, 12 → 24 V dc |
| Length | 49.95mm |
| Maximum DC Voltage | 24 V, 36 V |
| Mounting Type | Flush Mount |
| Switching Current | 1.5 → 100 mA, 500 μA |
| IP Rating | IP67, IP69K |
| Housing Material | Nickel Plated Brass (Enclosure), PPS (Front) |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 4000Hz |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CE, CSA, UL |
