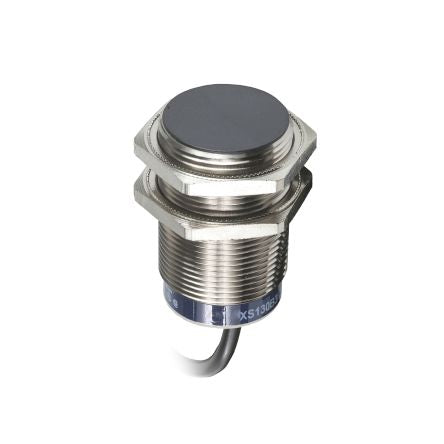

Induct Sensor 30mm NO PNP 12-24V 5m Cab [XS530B1PAL5]; 195-1855
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 10 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 36 V dc, 12 → 24 V dc |
| Length | 44.25mm |
| Maximum DC Voltage | 24 V, 36 V |
| Mounting Type | Flush Mount |
| Switching Current | =10 mA, =200 mA |
| IP Rating | IP68, IP69K |
| Housing Material | Nickel Plated Brass (Enclosure), PPS (Front) |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 1000Hz |
| Short Circuit Overload Protection | Yes |
| Standards Met | CE, CSA, UL |
| Maximum Operating Temperature | +70°C |
