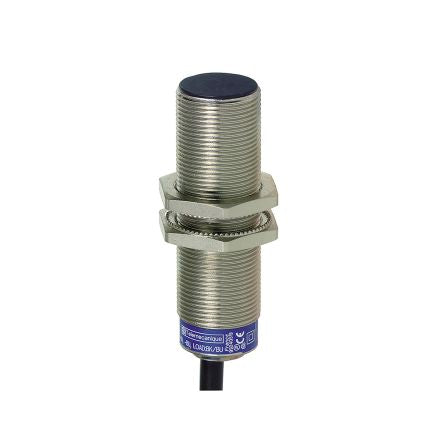

Ind Sensor Metal 18mm NC 24-240V 5m [XS618B1MBL5]; 195-1863
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | NC |
| Detection Range | 8 mm |
| Terminal Type | Cable |
| Supply Voltage | 20 → 264 V ac/dc, 24 → 240 V ac/dc |
| Length | 56.15mm |
| Maximum DC Voltage | 240 V, 264 V |
| Maximum AC Voltage | 240 V, 264 V |
| Mounting Type | Flush Mount |
| Switching Current | 5 → 200 mA, 5 → 300 mA, 800 μA |
| IP Rating | IP68, IP69K |
| Housing Material | Nickel Plated Brass (Enclosure), PPS (Front) |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Frequency | 25 Hz, 1000 Hz |
| Standards Met | CE, CSA, UL |
