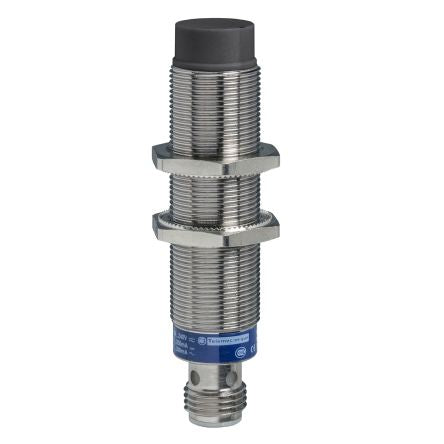

Induct Sensor 18mm 24-240V 1/2UNF [XS618B4MAU20]; 195-1869
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | NO |
| Detection Range | 12 mm |
| Terminal Type | 3 Pin Male connector 1/2in 20 UNF |
| Supply Voltage | 20 → 264 V ac/dc, 24 → 240 V ac/dc |
| Length | 71.65mm |
| Maximum AC Voltage | 240 V, 264 V |
| Maximum DC Voltage | 240 V, 264 V |
| Mounting Type | Non Flush |
| IP Rating | IP67, IP69K |
| Switching Current | 5 → 200 mA, 5 → 300 mA, 800 μA |
| Housing Material | Nickel Plated Brass (Enclosure), PPS (Front) |
| Maximum Switching Frequency | 25 Hz, 1000 Hz |
| Minimum Operating Temperature | -25°C |
| Standards Met | CE, CSA, UL |
| Maximum Operating Temperature | +70°C |
