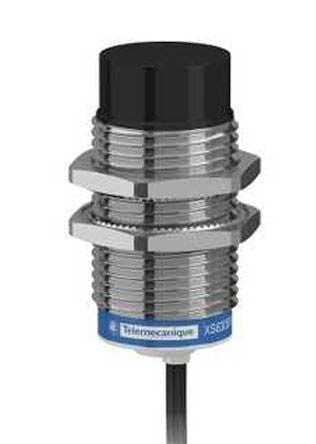

Telemecanique Sensors, M30 x 1.5, PNP-NO Inductive Sensor 64mm Length, 12 → 48 V dc supply voltage [XS630B5PAL2]; 144-9710
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | PNP-NO |
| Detection Range | 30 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 48 V dc |
| Length | 64mm |
| Maximum DC Voltage | 58V |
| Mounting Type | Non Flush |
| Switching Current | ≤10 (No Load) mA, ≤200 (Switching) mA |
| IP Rating | IP65, IP67, IP69K |
| Housing Material | Nickel Plated Brass |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 500Hz |
| Shielding | Unshielded |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CSA, E2, EN/ISO 13849-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 62061, TUV, UL |
