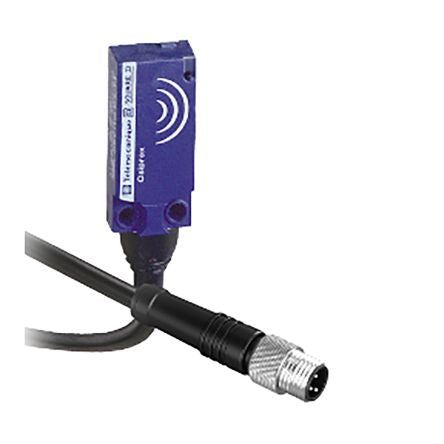

Telemecanique Sensors PNP-NO Inductive Sensor 15mm Length, 12 → 24 V dc supply voltage , IP68 Rating [XS7F1A1PAL01M8]; 179-9937
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 5 mm |
| Terminal Type | M8 - 3 Pin with cable |
| Supply Voltage | 12 → 24 V dc |
| Length | 15mm |
| Width | 8mm |
| Depth | 32mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Flush Mount |
| Switching Current | 100 (DC) mA |
| IP Rating | IP68 |
| Housing Material | PBT, Plastic |
| Standards Met | C-Tick Certificate, CSA Certificate, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, UL Certificate |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 2kHz |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
