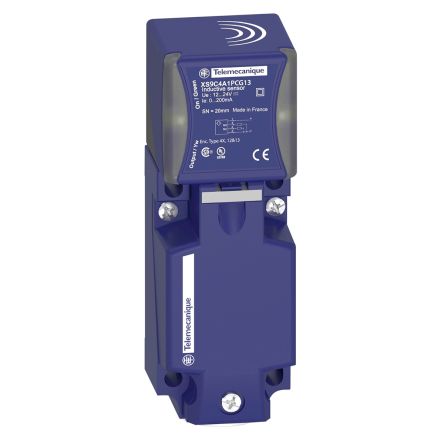

Ind Sensor Flat 40x40x117 1NC/1NO PNP [XS9C4A1PCG13]; 195-1884
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 20 mm |
| Terminal Type | 4 x 1.5 mm² Screw-Clamp Terminal |
| Supply Voltage | 10 → 36 V dc, 12 → 24 V dc |
| Length | 40mm |
| Width | 40mm |
| Depth | 131mm |
| Maximum DC Voltage | 24 V, 36 V |
| Mounting Type | Flush Mount |
| IP Rating | IP65, IP67, IP69K |
| Switching Current | 0 → 30 mA, =200 mA |
| Housing Material | Enclosure), PBT (Front |
| Short Circuit Overload Protection | Yes |
| Standards Met | CCC, CE, CSA, UL |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 250Hz |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
