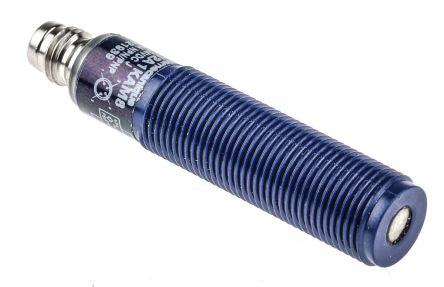

Telemecanique Sensors Ultrasonic Sensor Barrel M12 x 1, 50 mm, NPN 2NO, PNP 2NO, 4-Pin M8 Connector IP67 [XX512A1KAM8]; 753-0508
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 6 → 50 mm |
| Output Type | PNP/NPN-2NO |
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Transducer Frequency | 500kHz |
| Diameter | 12 mm |
| Maximum DC Voltage | 24V |
| Supply Voltage | 12 → 24 V dc |
| Terminal Type | M8 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Ultem |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +65°C |
| Switching Current | 100 mA |
| Dimensions | 12 (Dia.) x 58 mm |
| Minimum Operating Temperature | -20°C |
| Length | 58mm |
