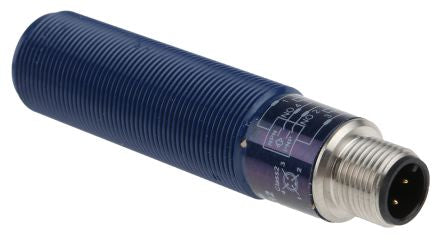

Telemecanique Sensors Ultrasonic Sensor Barrel M18 x 1, 25 → 152 mm, PNP, 4-Pin M12 Connector IP67 [XX518A1KAM12]; 283-599
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 25 → 150 mm |
| Output Type | PNP-2NO |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 500kHz |
| Diameter | 18 mm |
| Maximum DC Voltage | 24V |
| Supply Voltage | 12 → 24 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Plastic |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Length | 65mm |
| Switching Frequency | ≤80 Hz |
| Dimensions | 65 x 18 mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Switching Current | 100 mA |
