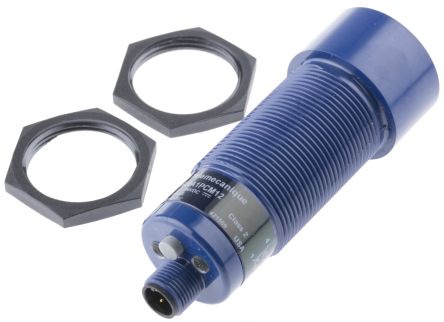

Telemecanique Sensors Ultrasonic Sensor Barrel M30 x 1.5, 51 → 991 mm, PNP, 4-Pin M12 Connector IP67 [XX630A1PCM12]; 612-2106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 50 → 1000 mm |
| Output Type | PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 200kHz |
| Diameter | 35 mm |
| Maximum DC Voltage | 24V |
| Supply Voltage | 12 → 24 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Plastic |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | ≤10 Hz |
| Dimensions | 85 x 35 mm |
| Minimum Operating Temperature | 0°C |
| Switching Current | 100 mA |
| Maximum Operating Temperature | +60°C |
| Length | 85mm |
