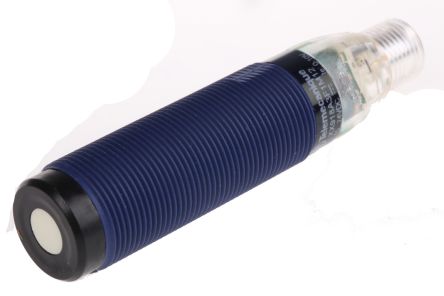

Telemecanique Sensors Ultrasonic Sensor Barrel M18 x 1, 500 mm, Analogue, 4-Pin M12 Connector IP67 [XX918A3F1M12]; 753-0517
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 50 → 500 mm |
| Output Type | Analogue |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 300kHz |
| Diameter | 18 mm |
| Maximum DC Voltage | 24V |
| Supply Voltage | 12 → 24 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Valox |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
| Switching Current | 40 mA |
| Length | 77.6mm |
| Dimensions | 18 (Dia.) x 77.6 mm |
