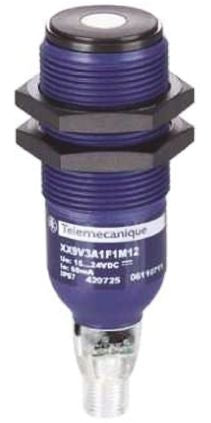

Telemecanique Sensors Ultrasonic Sensor Barrel M30 x 1.5, 1 m, Analogue, 4-Pin M12 Connector IP67 [XX9V3A1F1M12]; 753-0542
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 100 → 1000 mm |
| Output Type | Analogue |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 180kHz |
| Diameter | 30 mm |
| Maximum DC Voltage | 24V |
| Supply Voltage | 15 → 24 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Valox |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Length | 95.2mm |
| Dimensions | 27.2 (Dia.) x 95.2 mm |
| Switching Current | 60 mA |
| Minimum Operating Temperature | 0°C |
