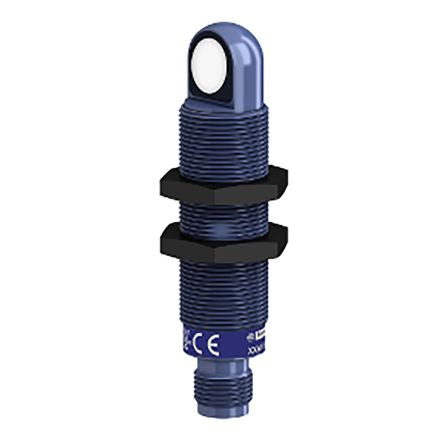

Telemecanique Sensors Ultrasonic Sensor Barrel M18 x 1, 0.105 → 1 m, Discrete, 5 Pin M12 Connector IP65, IP67 [XXA18P1PM12]; 177-8890
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 100 → 1000 mm |
| Output Type | PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Transducer Frequency | 200kHz |
| Diameter | 18 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 12 → 24 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP65, IP67 |
| Housing Material | PBT |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 11 Hz |
| Switching Current | 100 mA |
| Response Time | 45 (Delay) ms |
| Length | 79mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Sensor Configuration | Diffuse Reflection |
| Dimensions | 18 Dia. x 79 mm |
| Standards Met | CSA C22.2 No 14, CULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, UL 508 |
