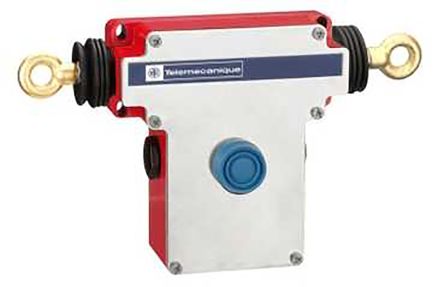

XY2CE Grab Wire Switch with E-Stop, 2 x 35 → 2 x 100m, 2NC, 2NO [XY2CEDA290]; 130-0877
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa XY2 |
| Series | XY2CE |
| Reset Button | Yes |
| Pole Configuration | DPST |
| Indicator Type | Rope Tension |
| Normal State Configuration | 2NC, 2NO |
| Maximum Rope Span | 2 x 35 → 2 x 100m |
| Maximum Current | 3 A ac, 270 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Stainless Steel (Cover), Zamak (Body) |
| Number of Cable Entries | 3 |
| Size of Cable Entries | ISO M20, PG 13.5 |
| Maximum Operating Temperature | +70°C |
| Width | 106mm |
| Hazardous Area Certification | ATEX |
| IP Rating | IP66 |
| Standards Met | CCC, CSA, CSA C 22-2, EAC, EN/IEC 60947-5-5, UL (NISD), UL 508 |
| Length | 285mm |
| E-Stop Button | Yes |
| Depth | 142mm |
| Dimensions | 285 x 106 x 142 mm |
| Minimum Operating Temperature | -25°C |
