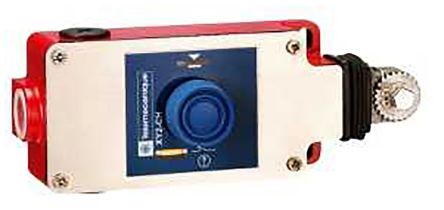

XY2CH Grab Wire Switch with E-Stop, 30m, 2NC, NO [XY2CH13290H29]; 130-0872
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa XY2 |
| Series | XY2CH |
| Reset Button | Yes |
| Pole Configuration | DPST |
| Indicator Type | Rope Tension |
| Normal State Configuration | NO, 2NC |
| Maximum Rope Span | 30m |
| Maximum Current | 1.5 A ac, 100 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Stainless Steel (Cover), Zamak (Body) |
| Number of Cable Entries | 3 |
| Size of Cable Entries | ISO M20 |
| Minimum Operating Temperature | -25°C |
| Length | 68mm |
| Depth | 201mm |
| Dimensions | 68 x 95 x 201 mm |
| Standards Met | CCC, CSA C 22-2, EAC, EN/IEC 60947-5-5, UL (NISD), UL 508 |
| Maximum Operating Temperature | +70°C |
| Width | 95mm |
| E-Stop Button | Yes |
| IP Rating | IP65 |
