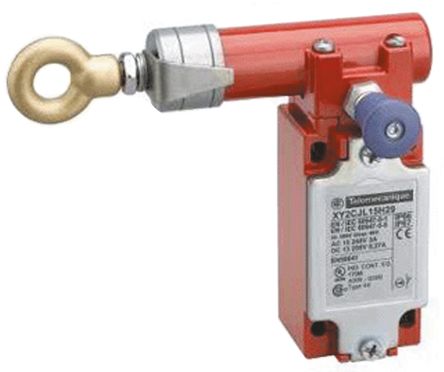

XY2CJ Cable Switch with E-Stop, Left Side, 30m, 2NC [XY2CJL17H29]; 837-1133
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XY2CJ |
| Reset Button | Yes |
| Pole Configuration | 2P |
| Normal State Configuration | 2NC |
| Mounting Orientation | Left Side |
| Maximum Rope Span | 30m |
| Maximum Current | 3 A @ 240 V ac, 270 mA @ 250 V dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Zamak |
| Number of Cable Entries | 1 |
| Size of Cable Entries | M20 |
| IP Rating | IP66, IP67 |
| Length | 158mm |
| E-Stop Button | Yes |
| Dimensions | 158 x 64.2 x 109 mm |
| Depth | 109mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Width | 64.2mm |
