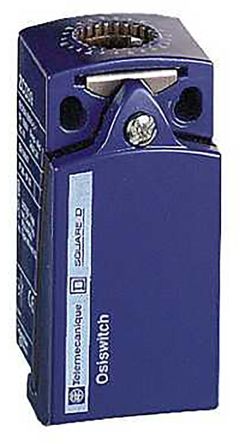

Snap Action Limit Switch Zamak, 2NO/NC, 240V [ZCD31]; 125-8480
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pole and Throw Configuration | 3P |
| Normal State Configuration | 2NO/NC |
| Maximum Current | 0.25 |
| Housing Material | Zamak |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw Clamp |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 31mm |
| Width | 30mm |
| Dimensions | 31 x 30 x 65 mm |
| Minimum Operating Temperature | -25°C |
| Depth | 65mm |
| Standards Met | CSA C22.2 No. 14, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Maximum Operating Temperature | +70°C |
