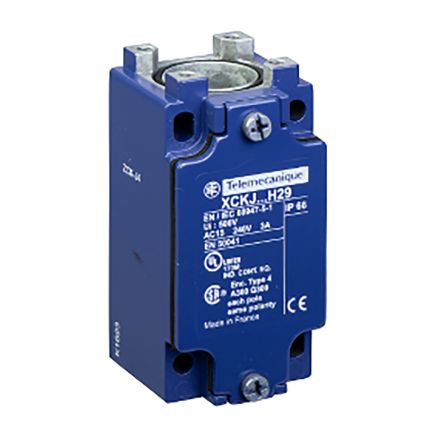

IP66 Snap Action Limit Switch Metal, 2CO, 240V [ZCKJ4H29]; 179-9984
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pole and Throw Configuration | 2P |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP66 |
| Maximum Current | 0.125 |
| Housing Material | Metal |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Series | OsiSense XC |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 40mm |
| Width | 44mm |
| Mounting Orientation | Vertical |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Dimensions | 40 x 44 x 77 mm |
| Depth | 77mm |
| Standards Met | CSA C22.2 No 14, EN/IEC 60947-5-1, IEC 60947-1, UL 508 |
