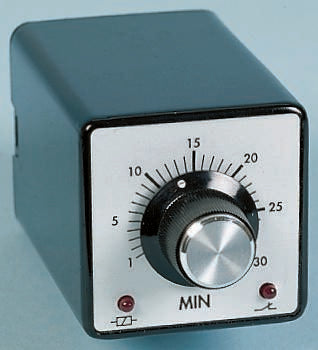

Tempatron ON Delay Energise Single Timer Relay, 8-Pin Connector, 1.5 → 30 min, DP-NO/NC, 2 Contacts, DPDT [2BDE30MLP110VAC]; 347-905
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 V ac |
| Time Range | 1.5 → 30 min |
| Mode of Operation | ON Delay Energise |
| Mounting Type | Plug In |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Time Increment | Minutes |
| Power Supply | External |
| Contact Configuration | DP-NO/NC |
| Current Maximum | 0.416666666666667 |
| Terminal Type | 8-Pin Connector |
| Switch Configuration | DPDT |
| Maximum Operating Temperature | +60°C |
| Contact Material | Silver Cadmium Oxide |
| Depth | 108mm |
| Length | 48mm |
| Width | 48mm |
| Time Delay | 100 (Reset) ms |
| Minimum Operating Temperature | -10°C |
