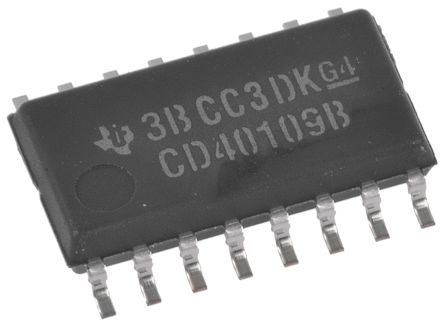

Texas Instruments CD40109BNSR, Quad, Voltage Level Shifter, 3-State, 16-Pin SOIC [CD40109BNSR]; 162-6503
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CD4000 |
| Logic Function | Voltage Level Shifter |
| Maximum High Level Output Current | -6.8mA |
| Maximum Low Level Output Current | 6.8mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 740 ns @ 50 pF |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Height | 1.85mm |
| Length | 10.5mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 18 V |
| Width | 5.6mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
