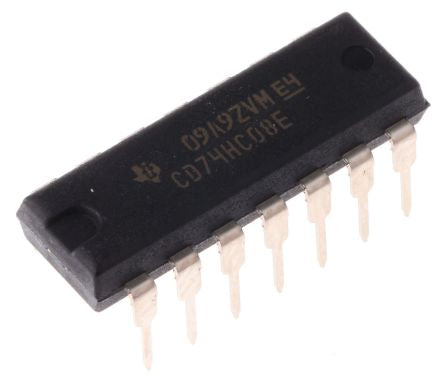

Texas Instruments CD74HC08EE4, Quad 2-Input AND Logic Gate, 2 → 6 V, 14-Pin PDIP [CD74HC08EE4]; 709-2845
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Through Hole |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | HC |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Maximum Operating Temperature | +125 °C |
| Width | 6.35mm |
| Height | 4.57mm |
| Length | 19.3mm |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -55 °C |
