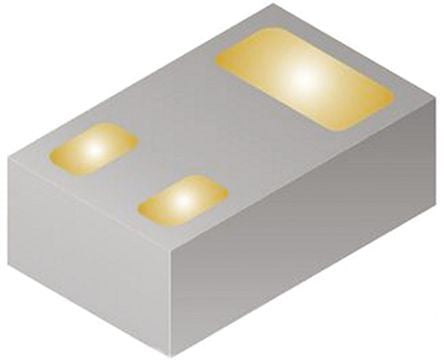

CSD13383F4T N-Channel MOSFET, 2.9 A, 12 V FemtoFET, 3-Pin PICOSTAR Texas Instruments [CSD13383F4T]; 145-7246
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.9 A |
| Maximum Drain Source Voltage | 12 V |
| Package Type | PICOSTAR |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 65 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 1.04mm |
| Forward Diode Voltage | 1V |
| Series | FemtoFET |
| Height | 0.35mm |
| Typical Gate Charge @ Vgs | 2 nC @ 0 V |
| Length | 0.64mm |
| Maximum Operating Temperature | +150 °C |
