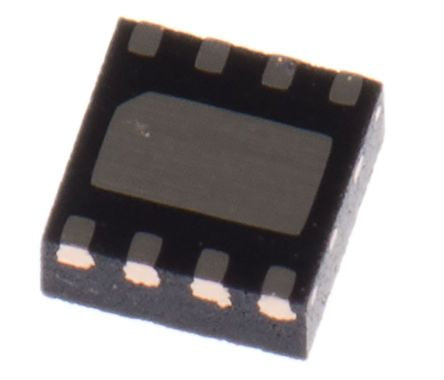

CSD17309Q3 N-Channel MOSFET, 60 A, 30 V NexFET, 8-Pin SON Texas Instruments [CSD17309Q3]; 162-8542
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 60 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 8.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.7V |
| Minimum Gate Threshold Voltage | 0.9V |
| Maximum Power Dissipation | 2.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +10 V |
| Number of Elements per Chip | 1 |
| Length | 3.4mm |
| Width | 3.4mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.1mm |
| Typical Gate Charge @ Vgs | 7.5 nC @ 4.5 V |
| Series | NexFET |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
