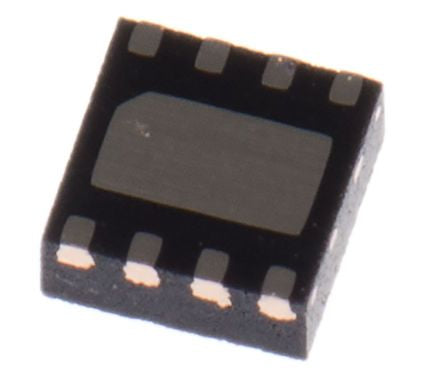

CSD18503Q5A N-Channel MOSFET, 145 A, 40 V NexFET, 8-Pin SON Texas Instruments [CSD18503Q5A]; 827-4874
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 145 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | SON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.3V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 3.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 5.8mm |
| Transistor Material | Si |
| Width | 5mm |
| Typical Gate Charge @ Vgs | 13 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
| Height | 1.1mm |
| Series | NexFET |
| Maximum Operating Temperature | +150 °C |
