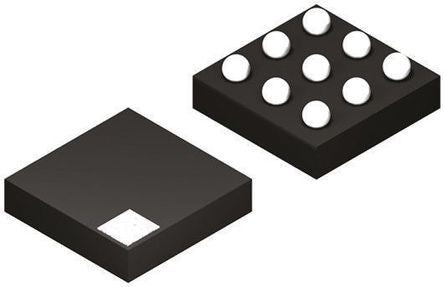

CSD22204WT P-Channel MOSFET, 5 A, 8 V NexFET, 9-Pin DSBGA Texas Instruments [CSD22204WT]; 145-7461
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.208333333333333 |
| Maximum Drain Source Voltage | 8 V |
| Package Type | DSBGA |
| Mounting Type | Surface Mount |
| Pin Count | 9 |
| Maximum Drain Source Resistance | 14 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 1.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -6 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 18.9 nC @ 4 V |
| Height | 0.35mm |
| Width | 1.5mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.5mm |
| Forward Diode Voltage | 1V |
| Transistor Material | Si |
| Series | NexFET |
