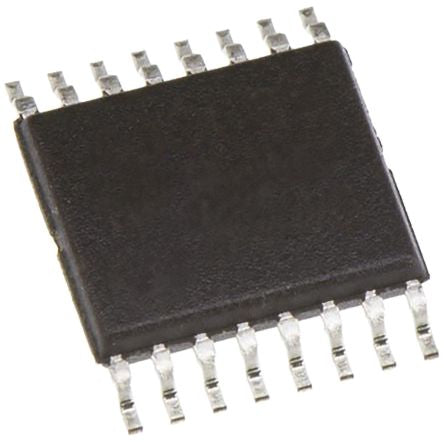

Texas Instruments DAC8568ICPW, 8-Channel 16 bit Serial DAC, 16-Pin TSSOP [DAC8568ICPW]; 709-3131
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 8 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 10µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.2%FSR |
| Length | 5mm |
| Integral Nonlinearity Error | ±12LSB |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Maximum Operating Temperature | +125 °C |
