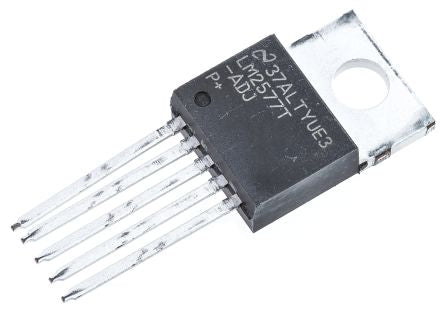

Texas Instruments LM2577T-ADJ/NOPB, Step Up Regulator 3A Adjustable, 12, 56 kHz 5-Pin, TO-220 [LM2577T-ADJ/NOPB]; 100-3984
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 3A |
| Number of Outputs | 1 |
| Line Regulation | 50 mV |
| Load Regulation | 50 mV |
| Mounting Type | Through Hole |
| Package Type | TO-220 |
| Pin Count | 5 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 56 kHz |
| Switching Regulator | Yes |
| Dimensions | 10.16 x 4.7 x 8.89mm |
| Height | 8.89mm |
| Maximum Input Voltage | 40 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 11.4 V |
| Maximum Output Voltage | 12.6 V |
| Maximum Operating Temperature | +125 °C |
| Length | 10.16mm |
| Minimum Input Voltage | 3.5 V |
| Width | 4.7mm |
