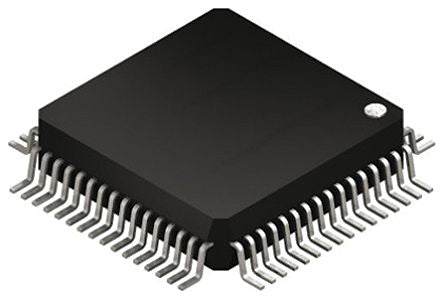

Texas Instruments MSP430F235TPM, 16bit MSP430 Microcontroller, 16MHz, 16 kB, 256 B Flash, 64-Pin LQFP [MSP430F235TPM]; 709-3986
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MSP430 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | MSP430 |
| Data Bus Width | 16bit |
| Program Memory Size | 16 kB, 256 B |
| Maximum Frequency | 16MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| ADC Resolution | 12bit |
| Number of I2C Channels | 1 |
| Number of Timers | 10 |
| Number of UART Channels | 1 |
| Pulse Width Modulation | 3 x 16 bit, 7 x 16 bit |
| Width | 10.2mm |
| PWM Channels | 3, 7 |
| ADCs | 8 x 12 bit |
| Maximum Operating Temperature | +105 °C |
| Length | 10.2mm |
| Dimensions | 10.2 x 10.2 x 1.45mm |
| Timers | 10 x 16 bit |
| Height | 1.45mm |
| Number of LIN Channels | 1 |
| Timer Resolution | 16bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
