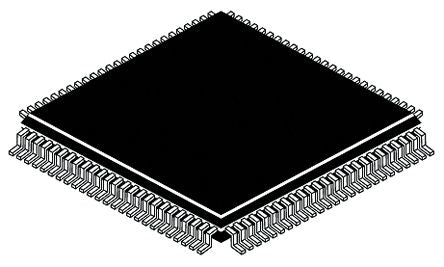

Texas Instruments MSP430F6636IPZ, 16bit MSP430 Microcontroller, 20MHz, 128 kB Flash, 100-Pin TQFP [MSP430F6636IPZ]; 162-6360
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MSP430 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | MSP430 |
| Data Bus Width | 16bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 18 kB |
| Number of PWM Units | 4 |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of Timers | 4 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 4(16 bit) |
| Dimensions | 14.2 x 14.2 x 1.45mm |
| Timers | 4 x 16 bit |
| Width | 14.2mm |
| Height | 1.45mm |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| ADCs | 16 x 12 bit |
| Length | 14.2mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Timer Resolution | 16bit |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
