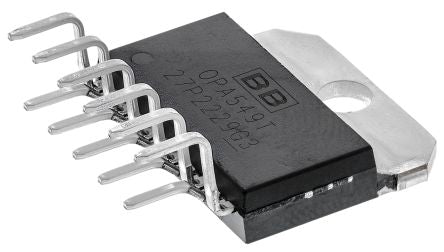

OPA549TG3 Texas Instruments, Power, Op Amp, 900kHz, 9 → 28 V, 11-Pin TO-220 [OPA549TG3]; 709-2021
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Power |
| Mounting Type | Through Hole |
| Package Type | TO-220 |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 11 |
| Typical Single Supply Voltage | 9 → 28 V |
| Typical Gain Bandwidth Product | 900kHz |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±24 V, ±28 V, ±5 V, ±9 V |
| Typical Slew Rate | 9V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 4.5mm |
| Length | 20.02mm |
| Dimensions | 20.02 x 10.7 x 4.5mm |
| Typical Input Voltage Noise Density | 70nV/√Hz |
| Typical Voltage Gain | 110 dB |
| Width | 10.7mm |
| Rail to Rail | No |
