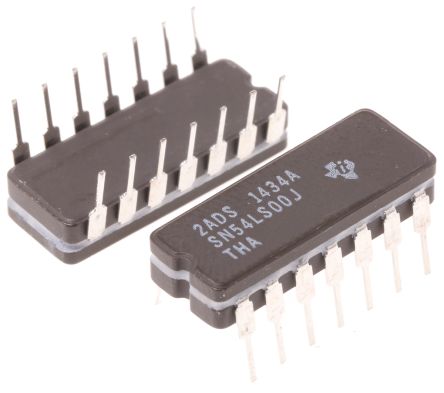

Texas Instruments SN54LS00J, Quad 2-Input NAND Logic Gate, 4.5 → 5.5 V, 14-Pin CDIP [SN54LS00J]; 436-3074
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Through Hole |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | CDIP |
| Pin Count | 14 |
| Logic Family | LS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ Maximum CL | 15 ns @ 5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 4mA |
| Length | 19.56mm |
| Maximum Operating Temperature | +125 °C |
| Height | 4.57mm |
| Dimensions | 19.56 x 6.92 x 4.57mm |
| Width | 6.92mm |
| Propagation Delay Test Condition | 15pF |
| Minimum Operating Temperature | -55 °C |
