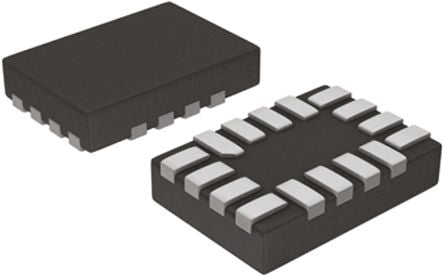

Texas Instruments SN74AVC4T245RSVR, Dual, Bus Transceiver, 4-Bit Non-Inverting 3-State, 1.2 → 3.6 V, 16-Pin UQFN [SN74AVC4T245RSVR]; 814-3887
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AVC |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 2 |
| Number of Channels per Chip | 4 |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | UQFN |
| Pin Count | 16 |
| Input Level | CMOS |
| Output Level | 3-State |
| Maximum High Level Output Current | -12mA |
| Maximum Low Level Output Current | 12mA |
| Maximum Propagation Delay Time @ Maximum CL | 10.3ns |
| Height | 0.5mm |
| Length | 2.65mm |
| Dimensions | 2.65 x 1.85 x 0.5mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 1.85mm |
| Minimum Operating Supply Voltage | 1.2 V |
